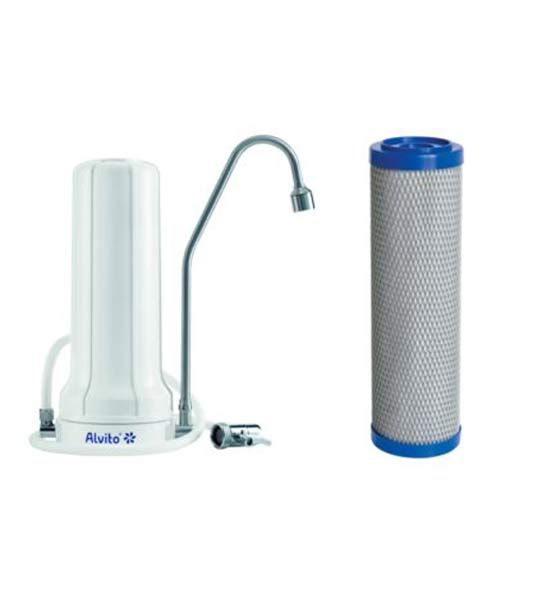

Complete Set Tabletop Water Filter (WW-01)

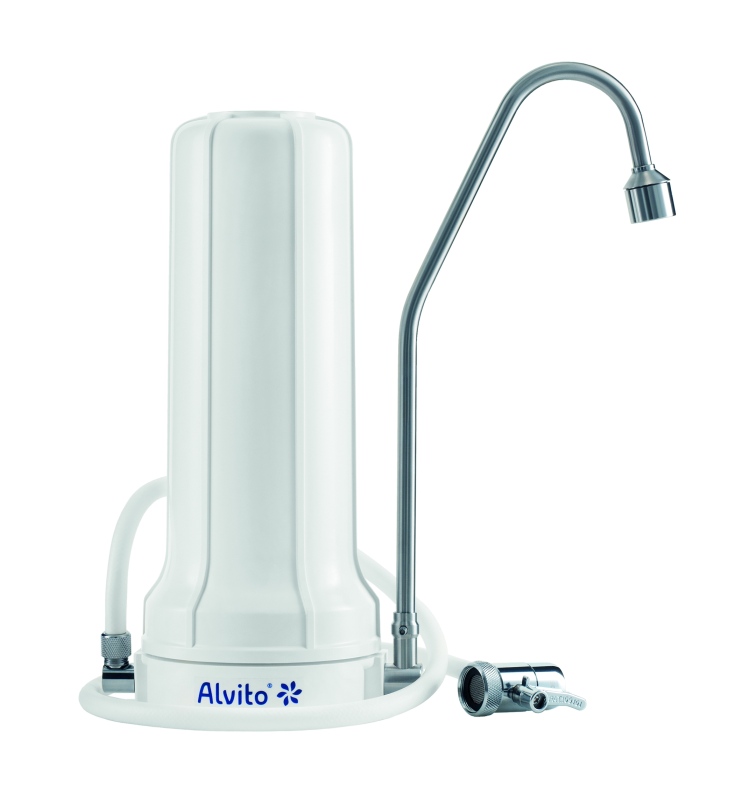

1 AQUA NEVO Pro D worktop filter

1 ABF PRIMUS SD blue, Universal standard filter Activated carbon block filter, mesh 0.45 µ

Quick and easy to install.

Screw the 3 way valve on the outlet of the existing sink tap to connect the filter housing by a white hose that can be shortened if necessary. You can draw utility water in larger quantities or draw filtered water by turning the 3 way valve to a horizontal position. The water outlets of the filters are equipped with a M22 male thread to attach either a simple aerator or an additional swirler for vitalizing the water.

All work top filters come as a complete set including a diverter valve (three way valve), hose and adapter matching on tap outlets with a M22 female thread.

The Alvito filter housings are made of PP (Polypropylene) and not of SAN (Styrene acrylonitrile resin). They are not transparent and no light will penetrate inside the filter housing that would cause contamination by algal growth. In tests they resulted in the highest impact resistance.

The Filter Cartridge ABF PRIMUS® SD Blue with a flow rate of 4 litres per minute at a water pressure of 4 bar, activated charcoal content of the core about 90%. A net-like jacket covers and protects an underlying filtering membrane with a pore size of 0.45μ. Both enclose the unique Alvito sintered carbon core. We recommend this filter for almost every standard use.

Important Notes on the operation of the cartridges

Service Life of a cartridge filter: The filter cartridge must be replaced after 6 months (in accordance with DgIN 1988). As a basic rule 6,000 – 8,000 liters of water can be filtered within a six-month period. Earlier replacement might be necessary when the water flow becomes noticeably reduced. This is not the result of any deficiency in the filter used, but rather a sign of the increased presence of fine particles in the raw unfiltered water. Temperature: For technical reasons, only for use with cold water, and protect from freezing.
